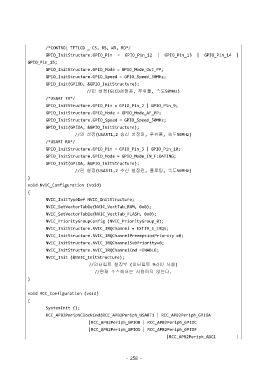

/*CONTROL TFTLCD _ CS, RS, WR, RD*/
GPIO_InitStructure.GPIO_Pin = GPIO_Pin_12 | GPIO_Pin_13 | GPIO_Pin_14 |
GPIO_Pin_15;
GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;
GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
GPIO_Init(GPIOD, &GPIO_InitStructure);
//핀 설정(GLCD설정용, 푸쉬풀, 속도50MHz)
/*USART TX*/
GPIO_InitStructure.GPIO_Pin = GPIO_Pin_2 | GPIO_Pin_9;
GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF_PP;
GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
GPIO_Init(GPIOA, &GPIO_InitStructure);
//핀 설정(USART1,2 송신 설정핀, 푸쉬풀, 속도50MHz)
/*USART RX*/
GPIO_InitStructure.GPIO_Pin = GPIO_Pin_3 | GPIO_Pin_10;
GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IN_FLOATING;
GPIO_Init(GPIOA, &GPIO_InitStructure);
//핀 설정(USART1,2 수신 설정핀, 플로팅, 속도50MHz)
}
void NVIC_Configuration (void)
{
NVIC_InitTypeDef NVIC_InitStructure;
NVIC_SetVectorTable(NVIC_VectTab_RAM, 0x0);
NVIC_SetVectorTable(NVIC_VectTab_FLASH, 0x0);
NVIC_PriorityGroupConfig (NVIC_PriorityGroup_0);
NVIC_InitStructure.NVIC_IRQChannel = EXTI9_5_IRQn;
NVIC_InitStructure.NVIC_IRQChannelPreemptionPriority =0;
NVIC_InitStructure.NVIC_IRQChannelSubPriority=0;
NVIC_InitStructure.NVIC_IRQChannelCmd =ENABLE;
NVIC_Init (&NVIC_InitStructure);
//인터럽트 설정부 (인터럽트 9라인 사용)
//현재 소스에서는 사용하지 않는다.
}

void RCC_Configuration (void)
{
SystemInit ();
RCC_APB2PeriphClockCmd(RCC_APB2Periph_USART1 | RCC_APB2Periph_GPIOA
|RCC_APB2Periph_GPIOB | RCC_APB2Periph_GPIOC
|RCC_APB2Periph_GPIOD | RCC_APB2Periph_GPIOE
|RCC_APB2Periph_ADC1 |
