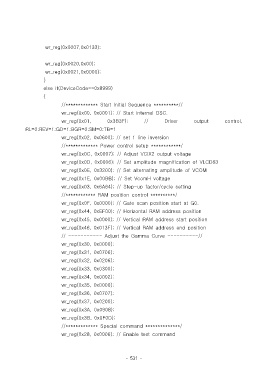

wr_reg(0x0007,0x0133);

wr_reg(0x0020,0x00);
wr_reg(0x0021,0x0000);

}
else if(DeviceCode==0x8999)
{
//************* Start Initial Sequence **********//
wr_reg(0x00, 0x0001); // Start internal OSC.

wr_reg(0x01, 0x3B3F); // Driver output control,
RL=0;REV=1;GD=1;BGR=0;SM=0;TB=1
wr_reg(0x02, 0x0600); // set 1 line inversion

//************* Power control setup ************/
wr_reg(0x0C, 0x0007); // Adjust VCIX2 output voltage
wr_reg(0x0D, 0x0006); // Set amplitude magnification of VLCD63
wr_reg(0x0E, 0x3200); // Set alternating amplitude of VCOM

wr_reg(0x1E, 0x00BB); // Set VcomH voltage
wr_reg(0x03, 0x6A64); // Step-up factor/cycle setting
//************ RAM position control **********/

wr_reg(0x0F, 0x0000); // Gate scan position start at G0.
wr_reg(0x44, 0xEF00); // Horizontal RAM address position
wr_reg(0x45, 0x0000); // Vertical RAM address start position
wr_reg(0x46, 0x013F); // Vertical RAM address end position

// ----------- Adjust the Gamma Curve ----------//
wr_reg(0x30, 0x0000);
wr_reg(0x31, 0x0706);
wr_reg(0x32, 0x0206);

wr_reg(0x33, 0x0300);
wr_reg(0x34, 0x0002);
wr_reg(0x35, 0x0000);
wr_reg(0x36, 0x0707);

wr_reg(0x37, 0x0200);
wr_reg(0x3A, 0x0908);
wr_reg(0x3B, 0x0F0D);

//************* Special command **************/
wr_reg(0x28, 0x0006); // Enable test command
