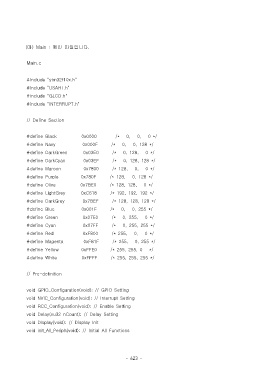

Page 630 - 완) I MDP 프로젝트 작품 보고서(전체과 1학년)1.6

(마) Main : 메인 파일입니다.

Main.c

#include "stm32f10x.h"

#include "USART.h"
#include "GLCD.h"
#include "INTERRUPT.h"

// Define Section

#define Black 0x0000 /* 0, 0, 0 */
#define Navy 0x000F /* 0, 0, 128 */

#define DarkGreen 0x03E0 /* 0, 128, 0 */
#define DarkCyan 0x03EF /* 0, 128, 128 */
#define Maroon 0x7800 /* 128, 0, 0 */
#define Purple 0x780F /* 128, 0, 128 */
#define Olive 0x7BE0 /* 128, 128, 0 */

#define LightGrey 0xC618 /* 192, 192, 192 */
#define DarkGrey 0x7BEF /* 128, 128, 128 */
#define Blue 0x001F /* 0, 0, 255 */

#define Green 0x07E0 /* 0, 255, 0 */
#define Cyan 0x07FF /* 0, 255, 255 */
#define Red 0xF800 /* 255, 0, 0 */
#define Magenta 0xF81F /* 255, 0, 255 */
#define Yellow 0xFFE0 /* 255, 255, 0 */

#define White 0xFFFF /* 255, 255, 255 */

// Pre-definition

void GPIO_Configuration(void); // GPIO Setting
void NVIC_Configuration(void); // Interrupt Setting
void RCC_Configuration(void); // Enable Setting
void Delay(vu32 nCount); // Delay Setting

void Display(void); // Display Init
void init_All_Periph(void); // Initial All Functions

- 623 -
