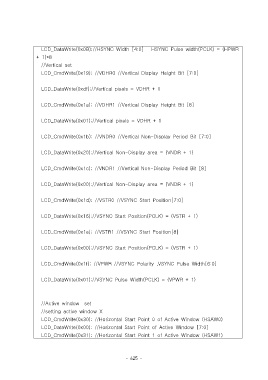

LCD_DataWrite(0x0B);//HSYNC Width [4:0] HSYNC Pulse width(PCLK) = (HPWR
+ 1)*8
//Vertical set

LCD_CmdWrite(0x19); //VDHR0 //Vertical Display Height Bit [7:0]

LCD_DataWrite(0xdf);//Vertical pixels = VDHR + 1

LCD_CmdWrite(0x1a); //VDHR1 //Vertical Display Height Bit [8]

LCD_DataWrite(0x01);//Vertical pixels = VDHR + 1

LCD_CmdWrite(0x1b); //VNDR0 //Vertical Non-Display Period Bit [7:0]

LCD_DataWrite(0x20);//Vertical Non-Display area = (VNDR + 1)

LCD_CmdWrite(0x1c); //VNDR1 //Vertical Non-Display Period Bit [8]

LCD_DataWrite(0x00);//Vertical Non-Display area = (VNDR + 1)

LCD_CmdWrite(0x1d); //VSTR0 //VSYNC Start Position[7:0]

LCD_DataWrite(0x16);//VSYNC Start Position(PCLK) = (VSTR + 1)

LCD_CmdWrite(0x1e); //VSTR1 //VSYNC Start Position[8]

LCD_DataWrite(0x00);//VSYNC Start Position(PCLK) = (VSTR + 1)

LCD_CmdWrite(0x1f); //VPWR //VSYNC Polarity ,VSYNC Pulse Width[6:0]

LCD_DataWrite(0x01);//VSYNC Pulse Width(PCLK) = (VPWR + 1)

//Active window set

//setting active window X
LCD_CmdWrite(0x30); //Horizontal Start Point 0 of Active Window (HSAW0)
LCD_DataWrite(0x00); //Horizontal Start Point of Active Window [7:0]
LCD_CmdWrite(0x31); //Horizontal Start Point 1 of Active Window (HSAW1)
