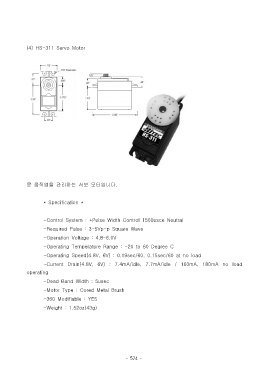

Page 581 - 완) I MDP 프로젝트 작품 보고서(전체과 1학년)1.6

(4) HS-311 Servo Motor

문 움직임을 관리하는 서보 모터입니다.

* Specification *

-Control System : +Pulse Width Control 1500usce Neutral

-Required Pulse : 3-5Vp-p Square Wave
-Operation Voltage : 4.8-6.0V

-Operating Temperature Range : -20 to 60 Degree C
-Operating Speed(4.8V, 6V) : 0.19sec/60, 0.15sec/60 at no load
-Current Drain(4.8V, 6V) : 7.4mA/idle, 7.7mA/idle / 160mA, 180mA no load

operating
-Dead Band Width : 5usec

-Motor Type : Cored Metal Brush
-360 Modifiable : YES
-Weight : 1.52oz(43g)

- 574 -
