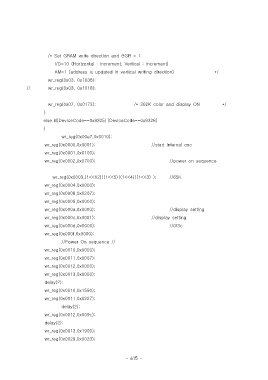

/* Set GRAM write direction and BGR = 1
I/D=10 (Horizontal : increment, Vertical : increment)
AM=1 (address is updated in vertical writing direction) */

wr_reg(0x03, 0x1038);
// wr_reg(0x03, 0x1018);

wr_reg(0x07, 0x0173); /* 262K color and display ON */
}

else if(DeviceCode==0x9325||DeviceCode==0x9328)
{
wr_reg(0x00e7,0x0010);

wr_reg(0x0000,0x0001); //start internal osc
wr_reg(0x0001,0x0100);
wr_reg(0x0002,0x0700); //power on sequence

wr_reg(0x0003,(1<<12)|(1<<5)|(1<<4)|(1<<3) ); //65K

wr_reg(0x0004,0x0000);
wr_reg(0x0008,0x0207);
wr_reg(0x0009,0x0000);
wr_reg(0x000a,0x0000); //display setting

wr_reg(0x000c,0x0001); //display setting
wr_reg(0x000d,0x0000); //0f3c
wr_reg(0x000f,0x0000);
//Power On sequence //
wr_reg(0x0010,0x0000);

wr_reg(0x0011,0x0007);
wr_reg(0x0012,0x0000);
wr_reg(0x0013,0x0000);

delay(2);
wr_reg(0x0010,0x1590);
wr_reg(0x0011,0x0227);
delay(2);
wr_reg(0x0012,0x009c);

delay(2);
wr_reg(0x0013,0x1900);
wr_reg(0x0029,0x0023);
