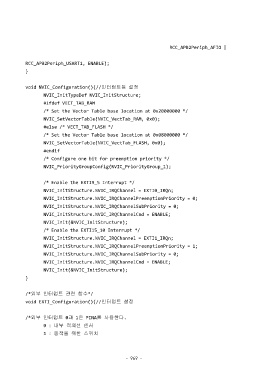

Page 976 - 완) I MDP 프로젝트 작품 보고서(전체과 1학년)1.6

RCC_APB2Periph_AFIO |

RCC_APB2Periph_USART1, ENABLE);
}

void NVIC_Configuration(){//인터럽트등 설정

NVIC_InitTypeDef NVIC_InitStructure;
#ifdef VECT_TAB_RAM
/* Set the Vector Table base location at 0x20000000 */
NVIC_SetVectorTable(NVIC_VectTab_RAM, 0x0);
#else /* VECT_TAB_FLASH */

/* Set the Vector Table base location at 0x08000000 */
NVIC_SetVectorTable(NVIC_VectTab_FLASH, 0x0);
#endif
/* Configure one bit for preemption priority */

NVIC_PriorityGroupConfig(NVIC_PriorityGroup_1);

/* Enable the EXTI9_5 Interrupt */
NVIC_InitStructure.NVIC_IRQChannel = EXTI0_IRQn;
NVIC_InitStructure.NVIC_IRQChannelPreemptionPriority = 0;
NVIC_InitStructure.NVIC_IRQChannelSubPriority = 0;

NVIC_InitStructure.NVIC_IRQChannelCmd = ENABLE;
NVIC_Init(&NVIC_InitStructure);
/* Enable the EXTI15_10 Interrupt */
NVIC_InitStructure.NVIC_IRQChannel = EXTI1_IRQn;

NVIC_InitStructure.NVIC_IRQChannelPreemptionPriority = 1;
NVIC_InitStructure.NVIC_IRQChannelSubPriority = 0;
NVIC_InitStructure.NVIC_IRQChannelCmd = ENABLE;
NVIC_Init(&NVIC_InitStructure);
}

/*외부 인터럽트 관련 함수*/
void EXTI_Configuration(){//인터럽트 설정

/*외부 인터럽트 0과 1은 PINA를 사용한다.
0 : 내부 적외선 센서

1 : 동작을 위한 스위치

- 969 -
