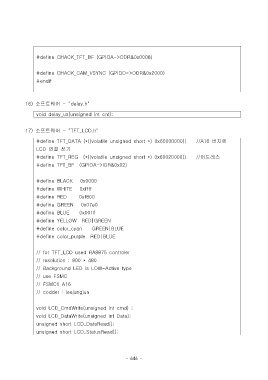

Page 653 - 완) I MDP 프로젝트 작품 보고서(전체과 1학년)1.6

#define CHACK_TFT_BF (GPIOA->ODR&0x0008)

#define CHACK_CAM_VSYNC (GPIOD->ODR&0x2000)
#endif

16) 소프트웨어 - “delay.h"

void delay_us(unsigned int cnt);

17) 소프트웨어 - “TFT_LCD.h"
#define TFT_DATA (*((volatile unsigned short *) 0x60000000)) //A16 번지에

LCD 연결 쓰기
#define TFT_REG (*((volatile unsigned short *) 0x60020000)) //어드레스
#define TFT_BF (GPIOA->IDR&0x02)

#define BLACK 0x0000

#define WHITE 0xffff
#define RED 0xf800
#define GREEN 0x07e0
#define BLUE 0x001f
#define YELLOW RED|GREEN

#define color_cyan GREEN|BLUE
#define color_purple RED|BLUE

// for TFT_LCD used RA8875 controler
// resolution : 800 * 480

// Background LED is LOW-Active type
// use FSMC
// FSMC1 A16
// codder : leejungjun

void LCD_CmdWrite(unsigned int cmd) ;
void LCD_DataWrite(unsigned int Data);
unsigned short LCD_DataRead();
unsigned short LCD_StatusRead();

- 646 -
