사) Dimensions: 85 x 56 x 17mm
아) Power: Micro USB socket 5V, 2A
7) 연결
가) Ethernet: 10/100 BaseT Ethernet socket
나) Video Output: HDMI (rev 1.3 & 1.4)
다) Audio Output: 3.5mm jack, HDMI
라) USB: 4 x USB 2.0 Connector
마) GPIO Connector: 40-pin 2.54 mm (100 mil) expansion header: 2x20 strip Providing 27
GPIO pins as well as +3.3 V, +5 V and GND supply lines
바) Camera Connector: 15-pin MIPI Camera Serial Interface (CSI-2)
사) JTAG: Not populated
아) Display Connector: Display Serial Interface (DSI) 15 way flat flex cable connector with
two data lanes and a clock lane
자) Memory Card Slot: Micro SDIO

8) 연결

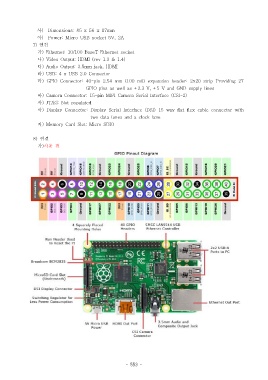

가)사용 핀
