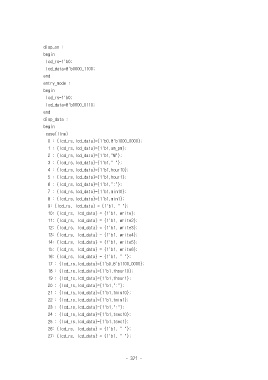

disp_on :
begin
lcd_rs=1'b0;
lcd_data=8'b0000_1100;
end
entry_mode :
begin
lcd_rs=1'b0;
lcd_data=8'b0000_0110;
end
disp_data :
begin
case(line)
0 : {lcd_rs,lcd_data}={1'b0,8'b1000_0000};
1 : {lcd_rs,lcd_data}={1'b1,am_pm};
2 : {lcd_rs,lcd_data}={1'b1,"M"};
3 : {lcd_rs,lcd_data}={1'b1," "};
4 : {lcd_rs,lcd_data}={1'b1,hour10};
5 : {lcd_rs,lcd_data}={1'b1,hour1};
6 : {lcd_rs,lcd_data}={1'b1,":"};
7 : {lcd_rs,lcd_data}={1'b1,min10};
8 : {lcd_rs,lcd_data}={1'b1,min1};
9: {lcd_rs, lcd_data} = {1'b1, " "};
10: {lcd_rs, lcd_data} = {1'b1, write};
11: {lcd_rs, lcd_data} = {1'b1, write2};
12: {lcd_rs, lcd_data} = {1'b1, write3};
13: {lcd_rs, lcd_data} = {1'b1, write4};
14: {lcd_rs, lcd_data} = {1'b1, write5};
15: {lcd_rs, lcd_data} = {1'b1, write6};
16: {lcd_rs, lcd_data} = {1'b1, " "};
17 : {lcd_rs,lcd_data}={1'b0,8'b1100_0000};
18 : {lcd_rs,lcd_data}={1'b1,thour10};
19 : {lcd_rs,lcd_data}={1'b1,thour1};
20 : {lcd_rs,lcd_data}={1'b1,":"};
21 : {lcd_rs,lcd_data}={1'b1,tmin10};
22 : {lcd_rs,lcd_data}={1'b1,tmin1};
23 : {lcd_rs,lcd_data}={1'b1,":"};
24 : {lcd_rs,lcd_data}={1'b1,tsec10};
25 : {lcd_rs,lcd_data}={1'b1,tsec1};
26: {lcd_rs, lcd_data} = {1'b1, " "};
27: {lcd_rs, lcd_data} = {1'b1, " "};

- 371 -
