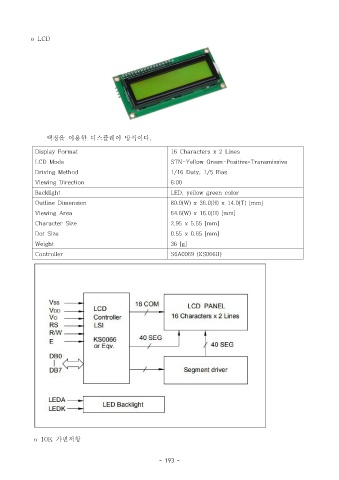

o  LCD




















                      액정을  이용한  디스플레이  방식이다.
             Display  Format                                 16  Characters  x  2  Lines

             LCD  Mode                                       STN Yellow  Green Positive-Transmissive–  –
             Driving  Method                                 1/16  Duty,  1/5  Bias
             Viewing  Direction                              6:00
             Backlight                                       LED,  yellow  green  color

             Outline  Dimension                              80.0(W)  x  36.0(H)  x  14.0(T)  [mm]
             Viewing  Area                                   64.6(W)  x  16.0(H)  [mm]
             Character  Size                                 2.95  x  5.55  [mm]
             Dot  Size                                       0.55  x  0.65  [mm]

             Weight                                          36  [g]
             Controller                                      S6A0069  (KS066U)






































              o  10K   가변저항
