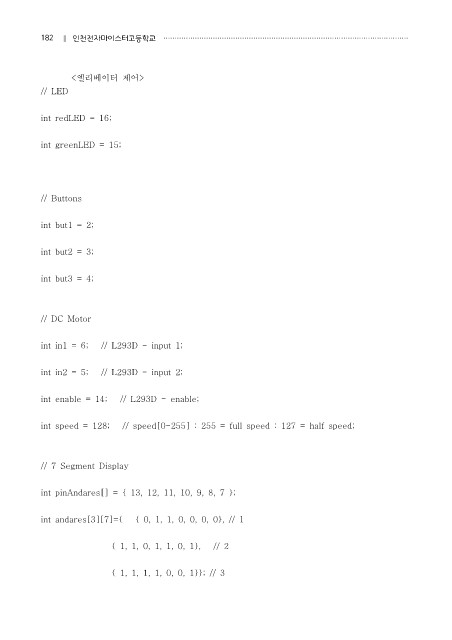

<엘리베이터 제어>
// LED

int redLED = 16;

int greenLED = 15;

// Buttons

int but1 = 2;

int but2 = 3;

int but3 = 4;

// DC Motor

int in1 = 6; // L293D - input 1;

int in2 = 5; // L293D - input 2;

int enable = 14; // L293D - enable;

int speed = 128; // speed[0-255] : 255 = full speed : 127 = half speed;

// 7 Segment Display

int pinAndares[] = { 13, 12, 11, 10, 9, 8, 7 };

int andares[3][7]={ { 0, 1, 1, 0, 0, 0, 0}, // 1

{ 1, 1, 0, 1, 1, 0, 1}, // 2

{ 1, 1, 1, 1, 0, 0, 1}}; // 3
