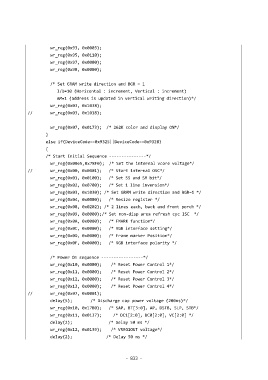

wr_reg(0x93, 0x0003);
wr_reg(0x95, 0x0110);
wr_reg(0x97, 0x0000);
wr_reg(0x98, 0x0000);

/* Set GRAM write direction and BGR = 1
I/D=10 (Horizontal : increment, Vertical : increment)
AM=1 (address is updated in vertical writing direction)*/
wr_reg(0x03, 0x1038);
// wr_reg(0x03, 0x1018);

wr_reg(0x07, 0x0173); /* 262K color and display ON*/
}
else if(DeviceCode==0x9325||DeviceCode==0x9328)
{
/* Start Initial Sequence ---------------*/
wr_reg(0x00e5,0x78F0); /* Set the internal vcore voltage*/
// wr_reg(0x00, 0x0001); /* Start internal OSC*/
wr_reg(0x01, 0x0100); /* Set SS and SM bit*/
wr_reg(0x02, 0x0700); /* Set 1 line inversion*/
wr_reg(0x03, 0x1030); /* Set GRAM write direction and BGR=1 */
wr_reg(0x04, 0x0000); /* Resize register */
wr_reg(0x08, 0x0202); /* 2 lines each, back and front porch */
wr_reg(0x09, 0x0000);/* Set non-disp area refresh cyc ISC */
wr_reg(0x0A, 0x0000); /* FMARK function*/
wr_reg(0x0C, 0x0000); /* RGB interface setting*/
wr_reg(0x0D, 0x0000); /* Frame marker Position*/
wr_reg(0x0F, 0x0000); /* RGB interface polarity */

/* Power On sequence -----------------*/
wr_reg(0x10, 0x0000); /* Reset Power Control 1*/
wr_reg(0x11, 0x0000); /* Reset Power Control 2*/
wr_reg(0x12, 0x0000); /* Reset Power Control 3*/
wr_reg(0x13, 0x0000); /* Reset Power Control 4*/
// wr_reg(0x07, 0x0001);
delay(5); /* Discharge cap power voltage (200ms)*/
wr_reg(0x10, 0x17B0); /* SAP, BT[3:0], AP, DSTB, SLP, STB*/
wr_reg(0x11, 0x0137); /* DC1[2:0], DC0[2:0], VC[2:0] */
delay(2); /* Delay 50 ms */
wr_reg(0x12, 0x0139); /* VREG1OUT voltage*/
delay(2); /* Delay 50 ms */
