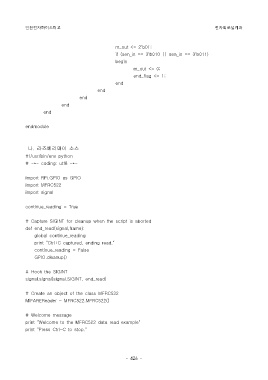

Page 433 - 완) I MDP 프로젝트 작품 보고서(전체과 1학년)1.6

인천전자마이스터고 전자회로설계과

m_out <= 2'b01;
if (sen_in == 3'b010 || sen_in == 3'b011)
begin
m_out <= 0;
end_flag <= 1;
end
end
end
end
end

endmodule

나. 라즈베리파이 소스

#!/usr/bin/env python
# -*- coding: utf8 -*-

import RPi.GPIO as GPIO
import MFRC522
import signal

continue_reading = True

# Capture SIGINT for cleanup when the script is aborted
def end_read(signal,frame):
global continue_reading
print "Ctrl+C captured, ending read."
continue_reading = False
GPIO.cleanup()

# Hook the SIGINT
signal.signal(signal.SIGINT, end_read)

# Create an object of the class MFRC522
MIFAREReader = MFRC522.MFRC522()

# Welcome message
print "Welcome to the MFRC522 data read example"
print "Press Ctrl-C to stop."
