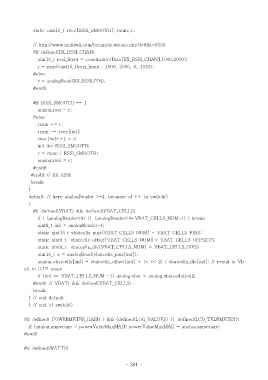

Page 341 - 2

static uint16_t rvec[RSSI_SMOOTH], rsum, r;

// http://www.multiwii.com/forum/viewtopic.php?f=8&t=5530
#if defined(RX_RSSI_CHAN)
uint16_t rssi_Input = constrain(rcData[RX_RSSI_CHAN],1000,2000);
r = map((uint16_t)rssi_Input , 1000, 2000, 0, 1023);
#else
r = analogRead(RX_RSSI_PIN);
#endif

#if RSSI_SMOOTH == 1
analog.rssi = r;
#else
rsum += r;
rsum -= rvec[ind];
rvec[ind++] = r;
ind %= RSSI_SMOOTH;
r = rsum / RSSI_SMOOTH;
analog.rssi = r;
#endif
#endif // RX RSSI
break;
}
default: // here analogReader >=4, because of ++ in switch()
{
#if defined(VBAT) && defined(VBAT_CELLS)
if ( (analogReader<4) || (analogReader>4+VBAT_CELLS_NUM-1) ) break;
uint8_t ind = analogReader-4;
static uint16_t vbatcells_pins[VBAT_CELLS_NUM] = VBAT_CELLS_PINS;
static uint8_t vbatcells_offset[VBAT_CELLS_NUM] = VBAT_CELLS_OFFSETS;
static uint8_t vbatcells_div[VBAT_CELLS_NUM] = VBAT_CELLS_DIVS;
uint16_t v = analogRead(vbatcells_pins[ind]);
analog.vbatcells[ind] = vbatcells_offset[ind] + (v << 2) / vbatcells_div[ind]; // result is Vb
att in 0.1V steps
if (ind == VBAT_CELLS_NUM -1) analog.vbat = analog.vbatcells[ind];
#endif // VBAT) && defined(VBAT_CELLS)
break;
} // end default
} // end of switch()

#if defined( POWERMETER_HARD ) && (defined(LOG_VALUES) || defined(LCD_TELEMETRY))
if (analog.amperage > powerValueMaxMAH) powerValueMaxMAH = analog.amperage;
#endif

#if defined(WATTS)

- 341 -
