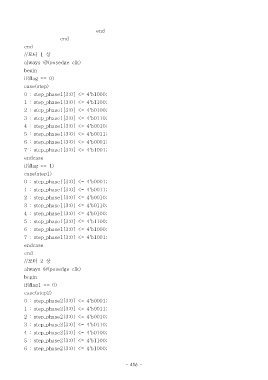

Page 416 - 2

end
end
end
// 모터 1 상

always @(posedge clk)
begin
if(flag == 0)
case(step)
0 : step_phase1[3:0] <= 4'b1000;

1 : step_phase1[3:0] <= 4'b1100;
2 : step_phase1[3:0] <= 4'b0100;
3 : step_phase1[3:0] <= 4'b0110;
4 : step_phase1[3:0] <= 4'b0010;
5 : step_phase1[3:0] <= 4'b0011;

6 : step_phase1[3:0] <= 4'b0001;
7 : step_phase1[3:0] <= 4'b1001;
endcase
if(flag == 1)
case(step1)

0 : step_phase1[3:0] <= 4'b0001;
1 : step_phase1[3:0] <= 4'b0011;
2 : step_phase1[3:0] <= 4'b0010;
3 : step_phase1[3:0] <= 4'b0110;
4 : step_phase1[3:0] <= 4'b0100;

5 : step_phase1[3:0] <= 4'b1100;
6 : step_phase1[3:0] <= 4'b1000;
7 : step_phase1[3:0] <= 4'b1001;
endcase
end

// 모터 2 상
always @(posedge clk)
begin
if(flag1 == 0)
case(step2)

0 : step_phase2[3:0] <= 4'b0001;
1 : step_phase2[3:0] <= 4'b0011;
2 : step_phase2[3:0] <= 4'b0010;
3 : step_phase2[3:0] <= 4'b0110;
4 : step_phase2[3:0] <= 4'b0100;

5 : step_phase2[3:0] <= 4'b1100;
6 : step_phase2[3:0] <= 4'b1000;
